Транзистор BD240B

• Структура - p-n-p
• Напряжение коллектор-эмиттер, не более: -80 В
• Напряжение коллектор-база, не более: -90 В
• Напряжение эмиттер-база, не более: -5 V
• Ток коллектора, не более: -2 А
• Рассеиваемая мощность коллектора, не более: 30 Вт
• Коэффициент усиления транзистора по току (h_fe): от 40

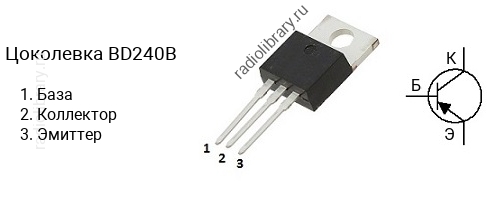

• Корпус: TO-220

Комплементарной парой для BD240B является транзистор BD239B c n-p-n структурой.Транзистор BD240B можно заменить на 2N6042, 2N6042G, 2SA1008, 2SA1008K, 2SA1008L, 2SA1008M, 2SA1010, 2SA1010K, 2SA1010L, 2SA1010M, 2SA1077, 2SA1078, 2SA1293, 2SA1293-O, 2SA1293-Y, 2SA1308, 2SA1308-O, 2SA1308-Y, 2SA1667, 2SA1668, 2SA1859, 2SA1859A, 2SA1930, 2SB1016, 2SB1016-O, 2SB1016-R, 2SB1016-Y, 2SB1016A, 2SB1016A-O, 2SB1016A-Y, 2SB1018, 2SB1018-O, 2SB1018-Y, 2SB1018A, 2SB1018A-O, 2SB1018A-Y, 2SB1020, 2SB1020A, 2SB1024, 2SB1090, 2SB1090-K, 2SB1090-L, 2SB1090-M, 2SB1367, 2SB1367-O, 2SB1367-R, 2SB1367-Y, 2SB1626, 2SB1626-O, 2SB1626-P, 2SB1626-Y, 2SB546, 2SB546-O, 2SB546-R, 2SB546-Y, 2SB546A, 2SB546A-K, 2SB546A-L, 2SB546A-M, 2SB547, 2SB595, 2SB595-O, 2SB595-R, 2SB595-Y, 2SB630, 2SB630-Q, 2SB630-R, 2SB630-S, 2SB633, 2SB633-C, 2SB633-D, 2SB633-E, 2SB633-F, 2SB673, 2SB703, 2SB703-Q, 2SB703-R, 2SB703-S, 2SB703A, 2SB703A-Q, 2SB703A-R, 2SB703A-S, 2SB861, 2SB861B, 2SB861C, 2SB870, 2SB870-P, 2SB870-Q, 2SB870-R, 2SB940, 2SB940-P, 2SB940-Q, 2SB940A, 2SB940A-P, 2SB940A-Q, 2SB943, 2SB943-P, 2SB943-Q, 2SB944, 2SB944-P, 2SB944-Q, 2SB945, 2SB945-P, 2SB945-Q, 2SB945-R, 2SB946, 2SB946-P, 2SB946-Q, 2SB946-R, 2SB992, 2SB992-O, 2SB992-Y, 2SB995, 2SB995-O, 2SB995-R, 2SB995-Y, 2SD743, 2SD743-Q, 2SD743-R, 2SD743-S, 2SD743A, 2SD743A-Q, 2SD743A-R, 2SD743A-S, BD240C, BD540C, BD544C, BD546C, BD648, BD650, BD652, BD902, BD938, BD938F, BD940, BD940F, BD942, BD942F, BD954, BD956, BDT60B, BDT60C, BDT62B, BDT62C, BDT64B, BDT64C, BDT86, BDT86F, BDT88, BDT88F, BDW24C, BDW47, BDW47G, BDW48, BDW54C, BDW54D, BDW64C, BDW64D, BDW74C, BDW74D, BDW94C, BDW94CF, BDX34C, BDX34CG, BDX34D, BDX54C, BDX54CG, BDX54D, BDX54E, BDX54F, FJP1943, FJP1943O, FJP1943R, FJPF1943, FJPF1943O, FJPF1943R, KSA1010, KSA1010O, KSA1010R, KSA1010Y, KSB546, KSB546-O, KSB546-R, KSB546-Y, KTA1038, KTA1038-O, KTA1038-Y, KTA1049, KTA1049O, KTA1049Y, KTB1367, KTB1367O, KTB1367R, KTB1367Y, KTB1369, KTB1369O, KTB1369Y, MJE15029, MJE15029G, MJE15031, MJE15031G, MJE15033, MJE15033G, MJE15035, MJE15035G, MJF127, MJF127G, MJF15031, MJF15031G, MJF6668, MJF6668G, NTE153, NTE398, TIP107, TIP107G, TIP117, TIP117G, TIP127, TIP127G, TIP137, TIP137G, TIP147T, TTB1020B
