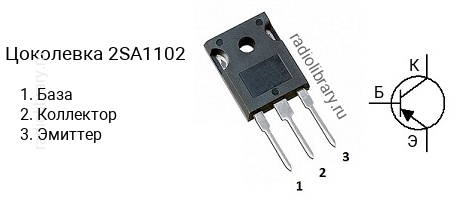

Транзистор 2SA1102

• Структура - p-n-p
• Напряжение коллектор-эмиттер, не более: -80 В
• Напряжение коллектор-база, не более: -80 В
• Напряжение эмиттер-база, не более: -6 V
• Ток коллектора, не более: -6 А
• Рассеиваемая мощность коллектора, не более: 60 Вт
• Коэффициент усиления транзистора по току (h_fe): от 50
• Граничная частота коэффициента передачи тока: 20 МГц
• Корпус: TO-3P

Обозначение на корпусе транзистора 2SA1102 часто наносится без первой цифры и буквы, т.е. маркируется как "A1102".Комплементарной парой для 2SA1102 является транзистор 2SC2577 c n-p-n структурой.Транзистор 2SA1102 можно заменить на 2SA1093, 2SA1093-O, 2SA1093-R, 2SA1093-Y, 2SA1103, 2SA1104, 2SA1105, 2SA1146, 2SA1146-O, 2SA1146-R, 2SA1146-Y, 2SA1186, 2SA1186-O, 2SA1186-P, 2SA1186-Y, 2SA1263, 2SA1263-O, 2SA1263-R, 2SA1264, 2SA1264-O, 2SA1264-R, 2SA1264N, 2SA1264N-O, 2SA1264N-R, 2SA1265, 2SA1265-O, 2SA1265-R, 2SA1294, 2SA1294-O, 2SA1294-Y, 2SA1301, 2SA1301O, 2SA1301R, 2SA1302, 2SA1302O, 2SA1302R, 2SA1303, 2SA1303-O, 2SA1303-P, 2SA1303-Y, 2SA1303O, 2SA1303P, 2SA1303Y, 2SA1386, 2SA1386-O, 2SA1386-P, 2SA1386-Y, 2SA1386A, 2SA1386A-O, 2SA1386A-P, 2SA1386A-Y, 2SA1489, 2SA1489-O, 2SA1489-P, 2SA1489-Y, 2SA1490, 2SA1490-O, 2SA1490-P, 2SA1490-Y, 2SA1491, 2SA1491-O, 2SA1491-P, 2SA1491-Y, 2SA1492, 2SA1492-O, 2SA1492-P, 2SA1492-Y, 2SA1516, 2SA1516-O, 2SA1516-R, 2SA1693, 2SA1693-O, 2SA1693-P, 2SA1693-Y, 2SA1694, 2SA1694-O, 2SA1694-P, 2SA1694-Y, 2SA1695, 2SA1695-O, 2SA1695-P, 2SA1695-Y, 2SA1803, 2SA1803O, 2SA1803R, 2SA1804, 2SA1804-O, 2SA1804-R, 2SA1805, 2SA1805-O, 2SA1805-R, 2SA1939, 2SA1939O, 2SA1939R, 2SA1940, 2SA1940O, 2SA1940R, 2SA1941, 2SA1941O, 2SA1941R, 2SA1942, 2SA1942O, 2SA1942R, 2SA1943, 2SA1943N, 2SA1943O, 2SA1943R, 2SA1962, 2SA1962O, 2SA1962R, 2SA1986, 2SA1986-O, 2SA1986-R, 2SA2120, 2SA2120-O, 2SA2120-R, 2SA2121, 2SA2121-O, 2SA2121-R, 2SA2151, 2SA2151-O, 2SA2151-P, 2SA2151-Y, 2SA2151A, 2SA2151A-O, 2SA2151A-P, 2SA2151A-Y, 2SA2223-O, 2SA2223-Y, 2SA2223A-O, 2SA2223A-Y, 2SB1162, 2SB1162-P, 2SB1162-Q, 2SB1162-S, 2SB1163, 2SB1163-P, 2SB1163-Q, 2SB1163-S, 2SB1361, 2SB1361-P, 2SB1361-Q, 2SB1361-S, 2SB1362, 2SB1362-P, 2SB1362-Q, 2SB1555, 2SB1555-A, 2SB1555-B, 2SB1555-C, 2SB1556, 2SB1556-A, 2SB1556-B, 2SB1556-C, 2SB1557, 2SB1557-A, 2SB1557-B, 2SB1557-C, 2SB1558, 2SB1558-A, 2SB1558-B, 2SB1558-C, 2SB1559, 2SB1559-O, 2SB1559-P, 2SB1559-Y, 2SB1560, 2SB1560-O, 2SB1560-P, 2SB1560-Y, 2SB1624, 2SB1624-O, 2SB1624-P, 2SB1624-Y, 2SB686, 2SB686-O, 2SB686-R, 2SB688, 2SB688O, 2SB688R, 2SB753, 2SB753-O, 2SB753-Y, 2SB775, 2SB775-D, 2SB775-E, 2SB778, 2SB778-O, 2SB778-R, 2SB816, 2SB816-D, 2SB816-E, 2SB817, 2SB817-D, 2SB817-E, 2SB863, 2SB863-O, 2SB863-R, 2SB965, 2SB965-P, 2SB965-Q, 2SB965-R, 2SB966, 2SB966-P, 2SB966-Q, 2SB966-R, BDV66A, BDV66B, BDV66C, BDV66D, FJA4210, FJA4210O, FJA4210R, FJA4210Y, FJA4213, FJA4213O, FJA4213R, FJL4215, FJL4215O, FJL4215R, KTA1943, KTA1943A, KTA1943AO, KTA1943AR, KTA1943O, KTA1943R, KTA1962, KTA1962A, KTA1962AO, KTA1962AR, KTA1962O, KTA1962R, KTB688, KTB688-O, KTB688-R, KTB688B, KTB688B-O, KTB688B-R, KTB778, KTB778-O, KTB778-R, KTB817, KTB817-O, KTB817-Y, KTB817B, KTB817B-O, KTB817B-Y, MAG9413, MAG9413A, MAG9413B, MG9410, MG9410-R, MG9411, MG9411-R, MJL0302A, MJL0302AG, MJL1302A, MJL1302AG, MJL4302A, MJL4302AG, NJW0302, NJW0302G, NJW1302, NJW1302G, NTE2329, TTA1943
