Транзистор 2SB544E

• Структура - p-n-p
• Напряжение коллектор-эмиттер, не более: -25 В
• Напряжение коллектор-база, не более: -25 В
• Напряжение эмиттер-база, не более: -5 V
• Ток коллектора, не более: -1 А
• Рассеиваемая мощность коллектора, не более: 0.9 Вт
• Коэффициент усиления транзистора по току (h_fe): от 100 до 200
• Граничная частота коэффициента передачи тока: 180 МГц

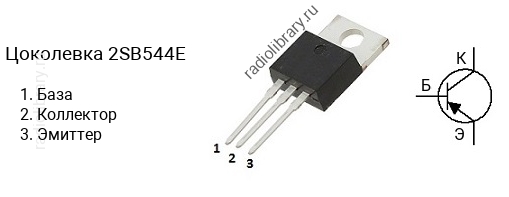

• Корпус: TO-220

Транзисторы серии 2SB544 делятся на несколько групп по коэффициенту усиления. Транзистор 2SB544D имеет коэффициент усиления в диапазоне от 60 до 120, 2SB544E - в диапазоне от 100 до 200, 2SB544F - в диапазоне от 160 до 320, 2SB544G - в диапазоне от 280 до 560.Обозначение на корпусе транзистора 2SB544E часто наносится без первой цифры и буквы, т.е. маркируется как "B544E".Комплементарной парой для 2SB544E является транзистор 2SD400E c n-p-n структурой.Транзистор 2SB544E можно заменить на 2SA1006, 2SA1006-Q, 2SA1006A, 2SA1006A-Q, 2SA1006B, 2SA1006B-Q, 2SA1008, 2SA1008K, 2SA1010, 2SA1010K, 2SA1011, 2SA1011E, 2SA1012, 2SA1077, 2SA1078, 2SA1262, 2SA1279, 2SA1288, 2SA1288-R, 2SA1289, 2SA1289-R, 2SA1290, 2SA1290-R, 2SA1291, 2SA1291-R, 2SA1293, 2SA1305, 2SA1306, 2SA1306A, 2SA1306B, 2SA1307, 2SA1308, 2SA1328, 2SA1329, 2SA1452A, 2SA1469, 2SA1469-R, 2SA1470, 2SA1470-R, 2SA1471, 2SA1471-R, 2SA1488, 2SA1488A, 2SA1535, 2SA1535A, 2SA1634, 2SA1634-E, 2SA1635, 2SA1635-E, 2SA1667, 2SA1668, 2SA1837, 2SA1859, 2SA1859A, 2SA1869, 2SA1930, 2SA1931, 2SA1964, 2SA1964-E, 2SA473, 2SA489, 2SA490, 2SA614, 2SA671, 2SA671-C, 2SA748, 2SA754, 2SA754-C, 2SA755, 2SA755-C, 2SA768, 2SA769, 2SA770, 2SA771, 2SA814, 2SA815, 2SA913, 2SA913A, 2SA968, 2SA968A, 2SA968B, 2SA985, 2SA985-Q, 2SA985A, 2SA985A-Q, 2SB1015, 2SB1015-Y, 2SB1016, 2SB1016A, 2SB1017, 2SB1018, 2SB1018A, 2SB1019, 2SB1090, 2SB1090-K, 2SB1097, 2SB1097-K, 2SB1133, 2SB1133-R, 2SB1134, 2SB1134-R, 2SB1135, 2SB1135-R, 2SB1136, 2SB1136-R, 2SB1185, 2SB1185E, 2SB1186, 2SB1186-E, 2SB1186A, 2SB1186A-E, 2SB1187, 2SB1187-E, 2SB1274, 2SB1274R, 2SB1366, 2SB1366-Y, 2SB1367, 2SB1368, 2SB1375, 2SB1548, 2SB1548A, 2SB1565, 2SB1565-E, 2SB1566, 2SB1566-E, 2SB434, 2SB435, 2SB507, 2SB507E, 2SB511, 2SB511-E, 2SB514, 2SB514E, 2SB546, 2SB546A, 2SB546A-K, 2SB547, 2SB553, 2SB565, 2SB565-C, 2SB566, 2SB566-C, 2SB566A, 2SB566A-C, 2SB595, 2SB596, 2SB630, 2SB630-Q, 2SB632, 2SB632-E, 2SB632K, 2SB632K-E, 2SB633, 2SB633-E, 2SB703, 2SB703-Q, 2SB703A, 2SB703A-Q, 2SB707, 2SB707-Y, 2SB708, 2SB708-Y, 2SB760, 2SB761, 2SB761A, 2SB762, 2SB762A, 2SB824, 2SB824-R, 2SB825, 2SB825-R, 2SB826, 2SB826-R, 2SB834, 2SB834Y, 2SB857, 2SB857-C, 2SB858, 2SB858-C, 2SB861, 2SB861C, 2SB870, 2SB940, 2SB940-P, 2SB940A, 2SB940A-P, 2SB941, 2SB941A, 2SB942, 2SB942A, 2SB943, 2SB944, 2SB945, 2SB946, 2SB947A, 2SB948A, 2SB992, 2SB993, 2SB994, 2SB994-Y, 2SB995, 2SB996, 2SD743, 2SD743-Q, 2SD743A, 2SD743A-Q, BD202, BD204, BD240, BD240A, BD240B, BD240C, BD242, BD242A, BD242B, BD242C, BD244, BD244A, BD244B, BD244C, BD302, BD304, BD534, BD536, BD538, BD540, BD540A, BD540B, BD540C, BD544, BD544A, BD544B, BD544C, BD546, BD546A, BD546B, BD546C, BD734, BD736, BD738, BD796, BD798, BD800, BD802, BD808, BD810, BD934, BD934F, BD936, BD936F, BD938, BD938F, BD940, BD940F, BD942, BD942F, BD946, BD948, BD950, BD952, BD954, BD956, BDT30, BDT30A, BDT30B, BDT30C, BDT82, BDT82F, BDT84, BDT84F, BDT86, BDT86F, BDT88, BDT88F, BDT92, BDT92F, BDT94, BDT94F, BDT96, BDT96F, BDX78, D44C1, D44C10, D44C11, D44C12, D44C2, D44C3, D44C4, D44C5, D44C6, D44C7, D44C8, D44C9, D45C1, D45C10, D45C11, D45C12, D45C2, D45C3, D45C4, D45C5, D45C6, D45C7, D45C8, D45C9, KSA1010, KSA1010Y, KSA473, KSA614, KSB1015, KSB1015-Y, KSB1017, KSB1097, KSB1097-Y, KSB1366, KSB1366-Y, KSB546, KSB596, KSB707, KSB707-Y, KSB708, KSB708-Y, KSB834, KSB834-Y, KTA1036, KTA1036-Y, KTA1038, KTA1046, KTA1046Y, KTA1049, KTA1276, KTA1658, KTA1659, KTA1659A, KTA968, KTA968A, KTB1366, KTB1366Y, KTB1367, KTB1368, KTB1369, KTB988, KTB988Y, MJE15029, MJE15029G, MJE15031, MJE15031G, MJE15033, MJE15033G, MJE15035, MJE15035G, MJE5850, MJE5850G, MJE5851, MJE5851G, MJE5852, MJE5852G, MJF15031, MJF15031G, NTE153
